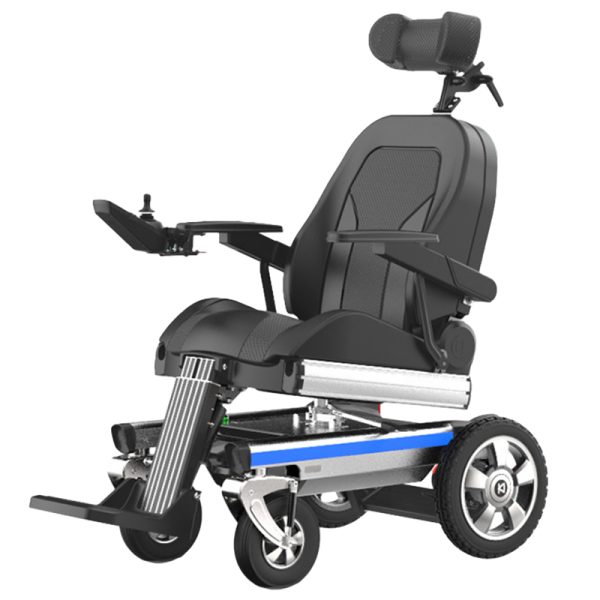

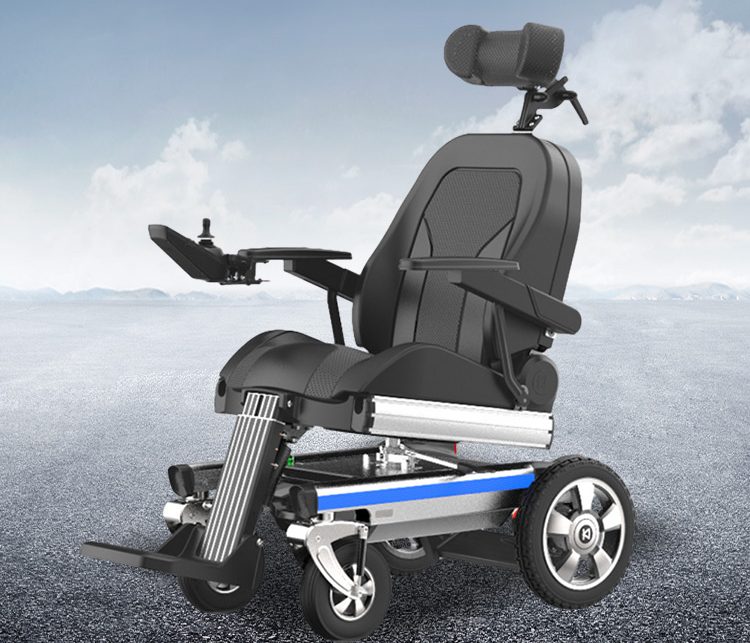

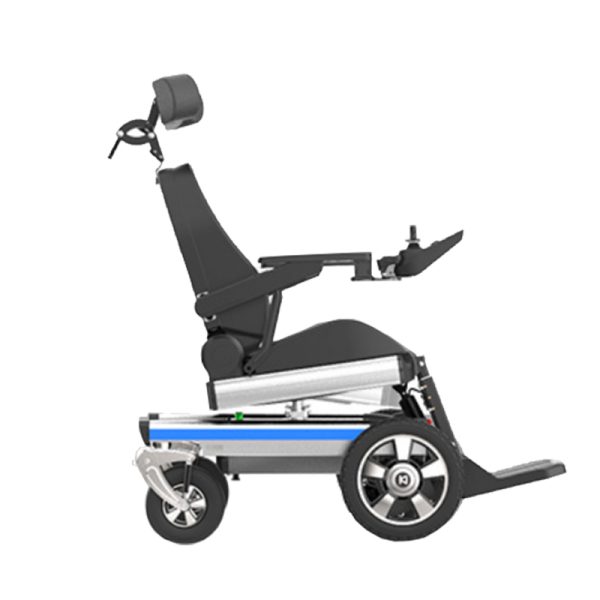

Electric Off-Road Wheelchair YSE134 with Power Recline & Lift Seat

The YSE134 Electric Off-Road Wheelchair is designed for users who need reliable mobility support with the flexibility to travel both indoors and outdoors. Combining strong driving performance, adjustable seating functions, and a durable aluminium frame, this power wheelchair provides a comfortable and stable solution for elderly users, people with disabilities, and anyone looking for greater independence in daily mobility.

Powered by a 24V lithium battery system with 15Ah or 30Ah capacity, the YSE134 offers a driving range of up to 20-40KM on a full charge, making it suitable for daily trips, community travel, shopping, and outdoor activities. The powerful electric drive system allows the wheelchair to handle different road conditions, including grass, gravel, pavement, and uneven surfaces. With a climbing ability of up to 15 degrees and an obstacle crossing height of 80mm, it provides improved confidence when navigating slopes and outdoor environments.

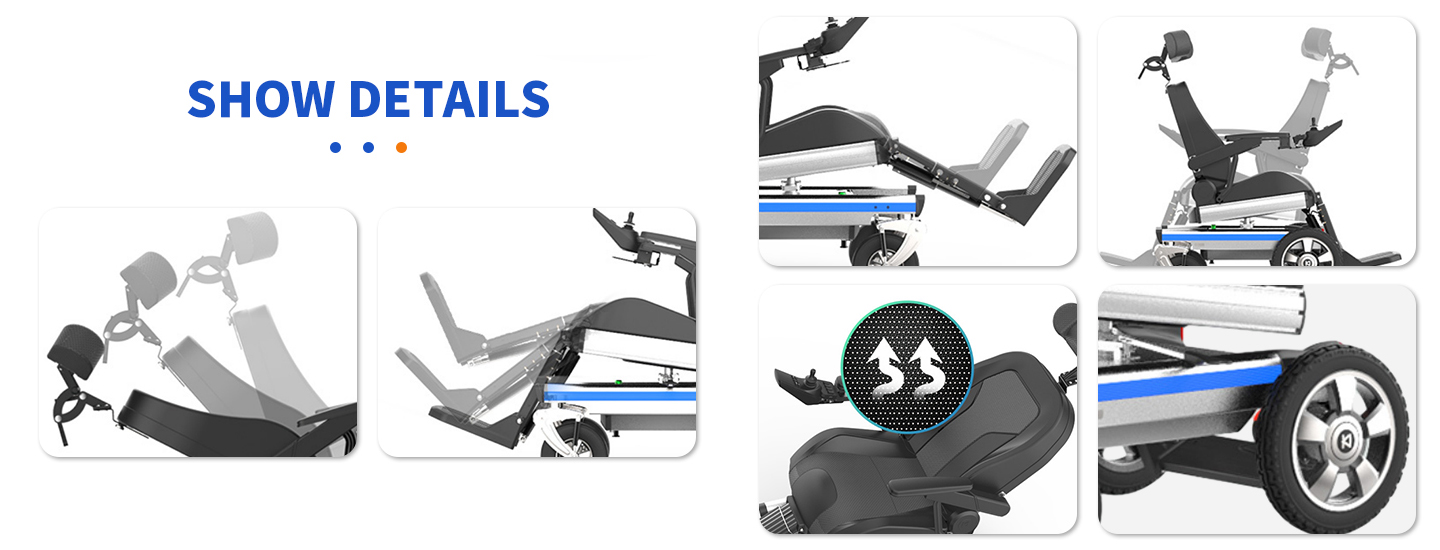

The wheelchair features a comfortable electric adjustment system designed around the user’s needs. The seat can be raised up to 45 degrees, allowing easier access and improved sitting positioning. The backrest supports electric reclining up to 160 degrees, helping users find a more comfortable posture during longer periods of use. The adjustable footrest can be lifted up to 70 degrees, providing additional leg support and relaxation options. The 360-degree rotating seat design makes transfers easier, especially for users who need extra assistance when getting on or off the wheelchair.

Built with a lightweight yet strong aluminium alloy frame, the YSE134 offers durability while keeping the overall structure practical for transportation. The modular design allows the wheelchair to be easily disassembled, making it possible to store it in a vehicle trunk for travel. This feature is especially useful for families and caregivers who want a convenient mobility solution without requiring a dedicated wheelchair vehicle.

Safety is an important part of the YSE134 design. The electromagnetic braking system provides reliable stopping performance, while the anti-slip function helps prevent backward movement when driving on slopes. The low-speed start system ensures smoother acceleration and reduces the risk of sudden movement, making operation easier for users who are new to electric wheelchairs.

Equipped with a universal controller, the YSE134 allows simple and convenient operation. Users can easily control speed, direction, and driving functions according to their preferences. The large 12-inch rear wheels and 8-inch front wheels provide better stability and support across different terrains, while the 100KG load capacity makes it suitable for a wide range of users.

With its combination of power, comfort, safety, and portability, the YSE134 Electric Off-Road Wheelchair is an ideal choice for those seeking a dependable outdoor power wheelchair. Whether for everyday transportation or outdoor exploration, it helps users maintain greater freedom, independence, and quality of life.

DELUXE RECLINERELECTRIC WHEELCHAIR

Aviation grade aluminum

Product Specs
Brand	Iyasocare	Packing size	123.5*83.5*94.5CM (Wooden box)
Model	YSE134	Charge time	4-6H
Seat width	450mm	Driving Range	20-40 KM
Seat depth	420mm	Max Speed	6KM/h
Seat height	440 mm	Climbing ability	15°
Product size	1150*580*1000 mm	Battery	24V 15Ah/30Ah lithium
Rear wheel size	12 inches	Brake type	Electromagnetic brake
Front wheel size	8 inches	Braking distance	≤800mm
N/G	60 Kg/ 70Kg	Obstacle crossing height	≤80mm
Frame material	aluminium	Cushion	Black
Load	100KG

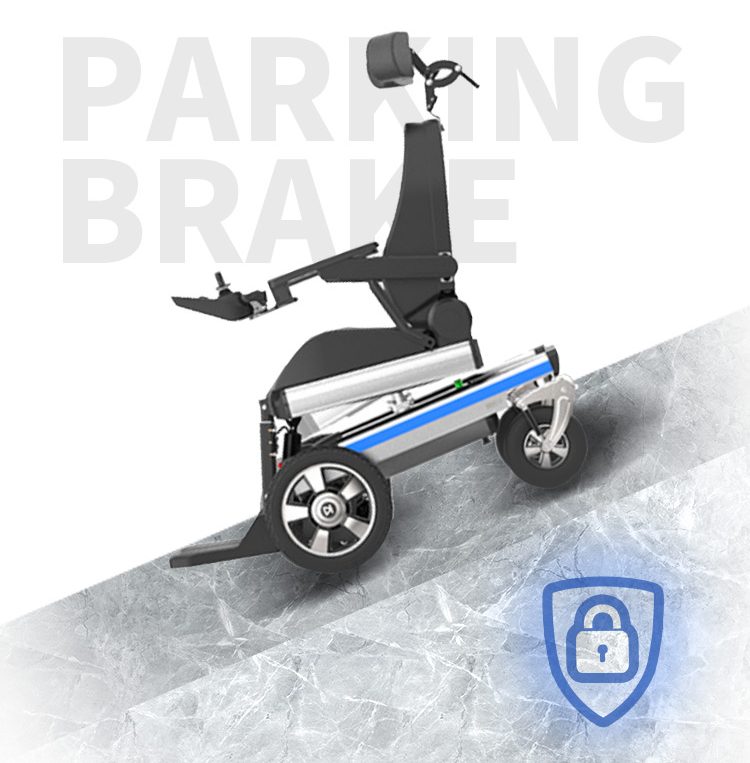

LET GO AND STOP
Uphill and downhill without slipping

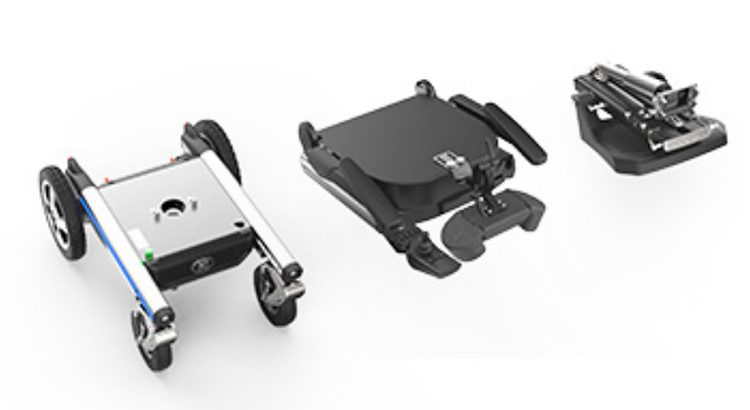

EASY TOFOLD AND STORE

Electric Off-Road Wheelchair YSE134 – Frequently Asked Questions

1. Is the YSE134 Electric Off-Road Wheelchair suitable for outdoor use?

Yes. The YSE134 is designed for both indoor and outdoor mobility. It features 12-inch rear wheels and 8-inch front wheels, providing better stability and traction on different surfaces such as pavement, grass, gravel roads, and slightly uneven terrain. With a 15° climbing ability and up to 80mm obstacle crossing height, it can handle common outdoor environments while maintaining a comfortable driving experience.

2. How far can the YSE134 travel on a full battery charge?

The driving range is approximately 20-40KM per charge, depending on factors such as user weight, road conditions, driving speed, and battery capacity. The wheelchair is equipped with a 24V lithium battery system, available in 15Ah or 30Ah options, providing reliable power for daily travel, shopping trips, community use, and outdoor activities.

3. How long does it take to fully charge the battery?

The charging time is around 4-6 hours for a full charge. For the best battery performance and lifespan, it is recommended to charge the wheelchair regularly and avoid completely draining the battery before charging.

4. Can the seat height and sitting position be adjusted?

Yes. The YSE134 comes with multiple electric adjustment functions to improve comfort and accessibility. The seat can be lifted up to 45 degrees, allowing users to adjust their position more easily. The backrest supports an electric recline of up to 160 degrees, and the footrest can be adjusted up to 70 degrees to provide better leg support.

5. Does the wheelchair make it easier to get on and off?

Yes. One of the key features of the YSE134 is the 360° rotating seat design. The seat rotation helps users change position more easily when transferring from a bed, sofa, or chair. This feature can also reduce the difficulty for caregivers when assisting users.

6. Can the YSE134 fit into a car for transportation?

Yes. The wheelchair uses a modular design, allowing the main components to be disassembled for easier transportation. After disassembly, it can be placed into many vehicle trunks, making it more convenient for family trips, medical appointments, and outdoor travel.

7. Is the YSE134 safe to use on slopes?

The YSE134 is designed with safety features for slope driving. The anti-slip system helps prevent the wheelchair from rolling backward on inclines, while the electromagnetic brake system provides reliable stopping control. The low-speed start function also helps avoid sudden acceleration, making operation smoother and safer.

8. What is the maximum weight capacity of this electric wheelchair?

The YSE134 supports users up to 100KG. Its aluminium alloy frame provides a strong and stable structure while keeping the wheelchair practical for everyday use and transportation.

9. Is the controller easy to operate?

Yes. The wheelchair is equipped with a universal controller designed for simple operation. Users can easily control movement direction and speed, making it suitable for elderly users and people who are new to electric wheelchairs.

10. Is the YSE134 comfortable for long periods of use?

Yes. The wheelchair is designed with user comfort in mind. The adjustable backrest, lift seat function, adjustable footrest, and ergonomic black cushion allow users to find a more comfortable sitting position during longer journeys. The large wheels also help absorb vibration when driving on outdoor surfaces.

11. What makes the YSE134 different from a standard power wheelchair?

Unlike many standard electric wheelchairs, the YSE134 combines off-road capability, electric recline, lift seat adjustment, and a rotating seat system in one design. It provides more flexibility for users who want both daily mobility support and the ability to explore outdoor environments.

12. Who is the YSE134 Electric Off-Road Wheelchair suitable for?

The YSE134 is suitable for elderly users, people with limited mobility, disabled users, and individuals who need additional support for daily transportation. It is ideal for home use, outdoor activities, shopping, travel, and community mobility where comfort, safety, and independence are important.
