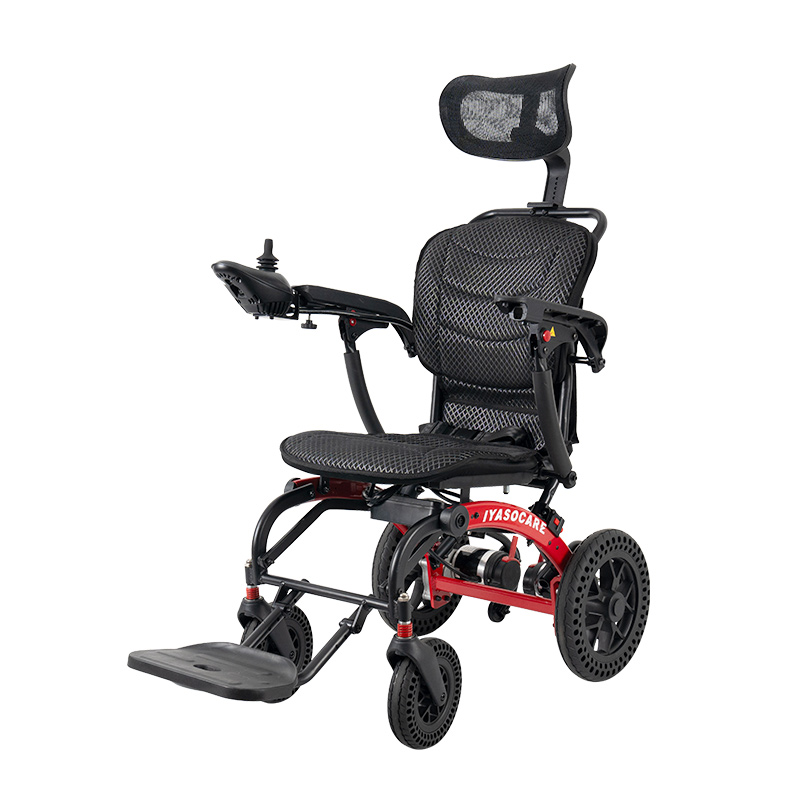

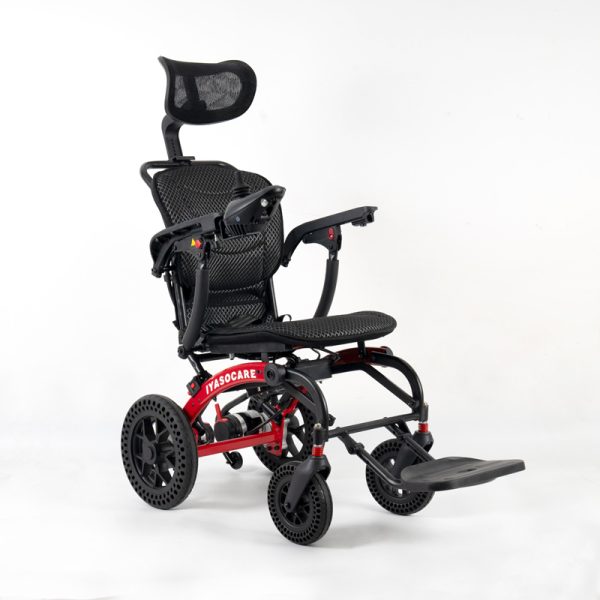

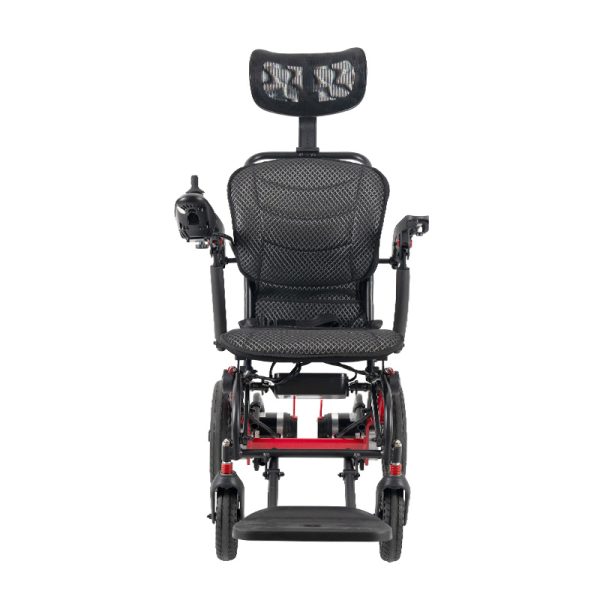

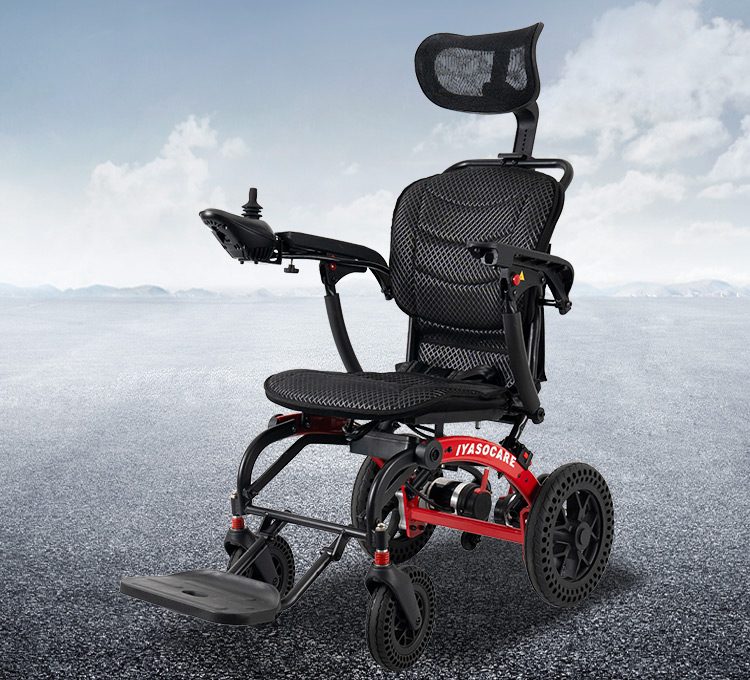

Ergonomic Foldable Electric Wheelchair YSE147 ith Headrest & Dual Motor

Product Specs
Brand	Iyasocare	Frame material	aluminium
Model	YSE147	Load	100KG
Seat width	40cm	Packing size	61*44*84 cm
Seat depth	40cm	Charge time	4-6H
Seat height	48cm	Driving Range	5-20KM
Headrest height	36 cm	Max Speed	6KM/h
Backrest height	50 cm	Climbing ability	9°
Product size	112*59*90 cm	Motor	180W*2Pcs
Folding size	97*59**60 cm	Battery	24V 6Ah/ 10Ah/ 20Ah lithium battery
Front wheel size	8 inches	Parking Brake	electromagnetic brake
Rear wheel size	12 inches	Cushion	Black
N/G	23KG/ 25KG

The YSE147 Ergonomic Foldable Electric Wheelchair is designed for users who need a reliable and comfortable mobility solution for daily use. Built with a durable aluminum frame, the chair offers a balance between strength and portability, making it suitable for both indoor movement and outdoor travel. With a total weight of 23 kg (25 kg gross), the wheelchair remains manageable for transport while maintaining the stability required for everyday mobility support.

A key highlight of the YSE147 is its ergonomic seating design. The second-generation ergonomic backrest supports the natural posture of the upper body, helping reduce pressure during extended sitting. The seat plate is paired with a removable leather cushion, which is easy to clean and maintain while providing consistent comfort throughout the day. A 36 cm headrest is included to support the neck and head, especially during longer rides. The flip-up rear armrests with PU armrest pads make it easier for users to get in and out of the wheelchair, while also allowing closer positioning to tables or desks.

For daily adaptability, the wheelchair features adjustable leg height, allowing users to customize the seating position according to their comfort and body posture. The seat dimensions—40 cm width and 40 cm depth with a 48 cm seat height—are designed to accommodate a wide range of adult users while maintaining proper support.

The YSE147 is powered by dual 180W motors, providing steady performance for everyday movement. The system is supported by an electromagnetic braking system, which automatically engages when the joystick is released, offering reliable stopping power and improved safety. Users can choose from 24V 6Ah, 10Ah, or 20Ah lithium batteries, depending on their travel needs. With these options, the wheelchair delivers a driving range of approximately 5–20 km on a single charge, with a charging time of about 4–6 hours.

Ride stability is enhanced by a carefully designed wheel system. The 8-inch front wheels feature PU tires with built-in shock absorption, helping reduce vibration when moving across common surfaces such as sidewalks, indoor floors, or paved paths. The 12-inch rear wheels use explosive-proof honeycomb run-flat tires, which eliminate the risk of punctures while maintaining reliable traction and durability.

With a maximum speed of 6 km/h and a climbing ability of up to 9°, the YSE147 is capable of handling typical daily environments such as ramps, small inclines, and community pathways. The wheelchair supports a maximum load capacity of 100 kg, making it suitable for a broad range of users.

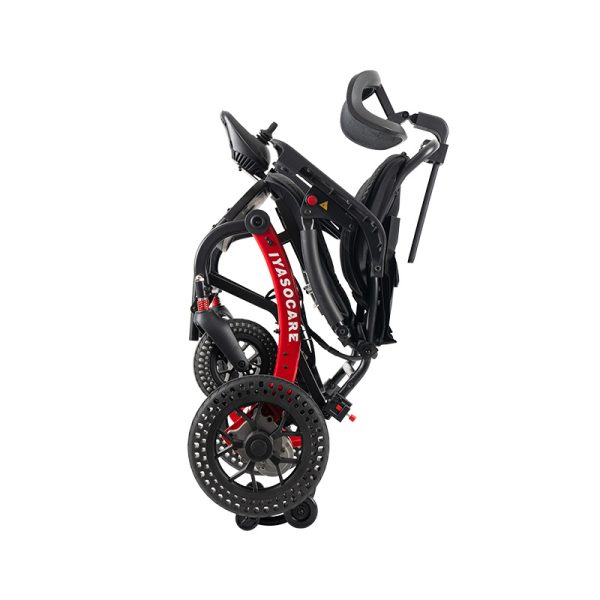

Portability is another important feature. The wheelchair folds into a compact size of 97 × 59 × 60 cm, allowing it to be stored more easily in vehicles or tight storage spaces. This foldable design makes it a practical choice for users who travel frequently or need a wheelchair that can be transported without complicated disassembly.

Ergonomic Foldable Electric Wheelchair YSE147 – Frequently Asked Questions

1. Is the YSE147 electric wheelchair easy to fold and transport?
Yes. The YSE147 foldable electric wheelchair is designed for daily practicality. The frame folds down to 97 × 59 × 60 cm, making it easier to store in a car trunk or compact storage space. The aluminum frame keeps the weight manageable at 23 kg (net weight) while still providing the stability needed for regular use. Many users choose this model specifically because it balances portability with durability.

2. How far can the wheelchair travel on a single charge?
The driving range depends on the battery option you select. The YSE147 supports 24V 6Ah, 10Ah, and 20Ah lithium batteries, providing an estimated range between 5 km and 20 km per charge. Factors such as terrain, user weight, and driving speed can affect the total range, but for most daily activities—such as moving around the home, shopping centers, or local neighborhoods—the range is more than sufficient.

3. Is the YSE147 comfortable for longer periods of sitting?
Comfort was a key focus in the design of this ergonomic electric wheelchair. The second-generation ergonomic backrest helps support a natural sitting posture, while the removable leather seat cushion provides consistent support and is easy to maintain. A 36 cm headrest is included for neck support, and the PU padded armrests add additional comfort during longer rides.

4. What kind of terrain can the YSE147 handle?
The wheelchair is built for everyday surfaces. The 8-inch front wheels with PU shock absorption help reduce vibration on sidewalks and indoor flooring, while the 12-inch honeycomb run-flat rear tires provide durability and puncture resistance. The chair can handle small ramps and inclines with a climbing ability of up to 9°, making it suitable for common urban environments.

5. Is the wheelchair safe and easy to control?
Yes. The dual 180W motors provide smooth and consistent power, allowing users to control movement easily. The electromagnetic braking system automatically engages when the control is released, helping the wheelchair stop safely and remain stable when parked.

6. Can the wheelchair be adjusted for different users?
The YSE147 includes several practical adjustments. The leg height can be adjusted to improve comfort and posture, and the rear flip-up armrests make it easier to transfer in and out of the chair. These features help the wheelchair adapt to different daily mobility needs.

7. What is the maximum user weight capacity?
The maximum load capacity is 100 kg, which covers a wide range of adult users. Combined with its aluminum frame construction, the chair offers dependable support without adding unnecessary weight.
