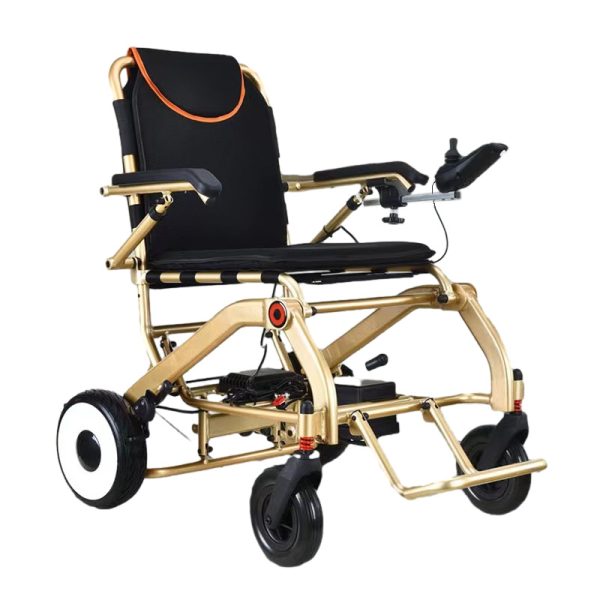

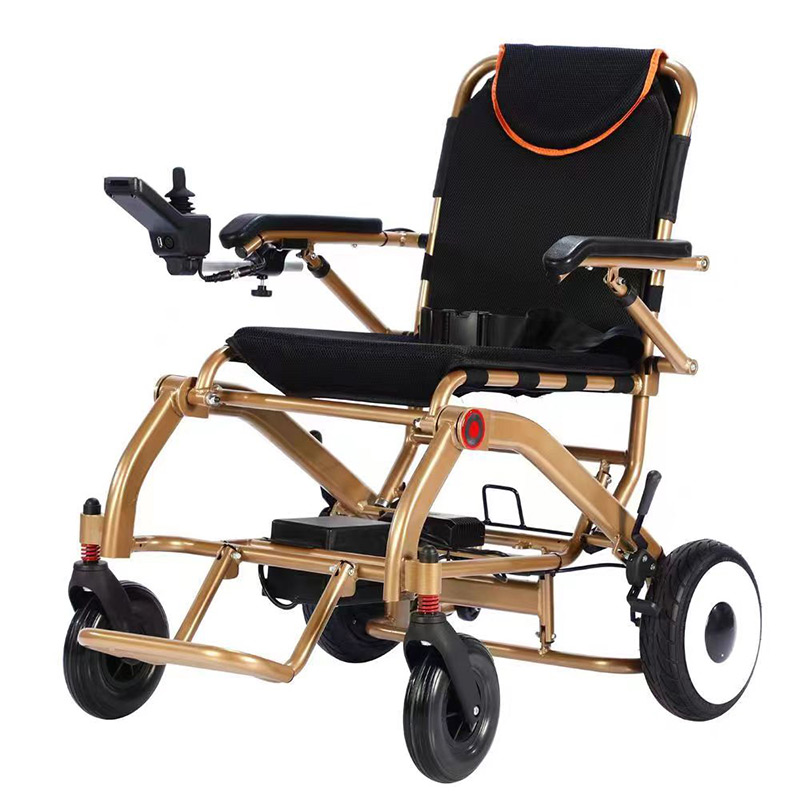

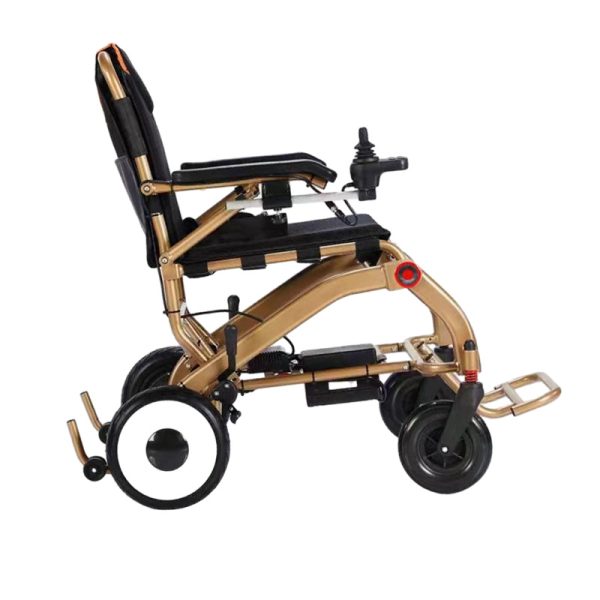

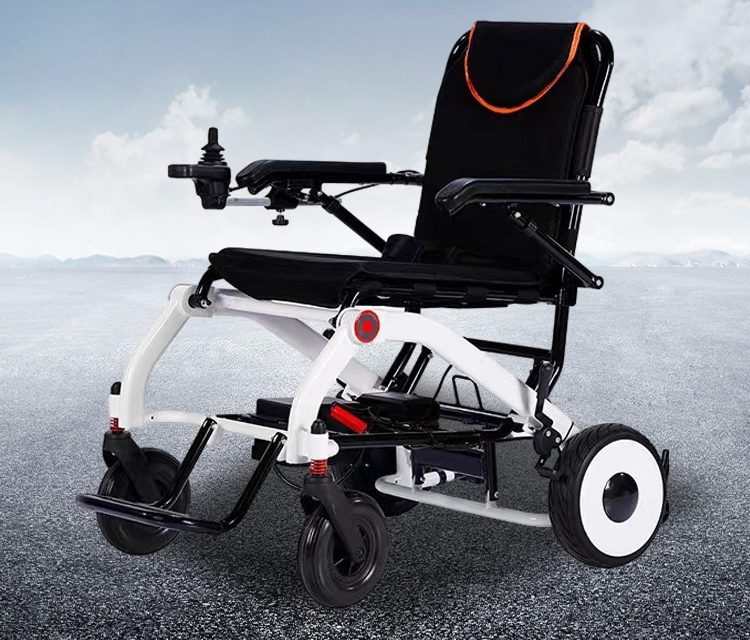

Folding Aluminum Electric Wheelchair YSE141 with 350W Brushless Motor

Product Specs
Brand	Iyasocare	Load: 100KG	100KG
Model	YSE141	Packing size	70*34*88cm
Seat width	420mm	Charge time	4-6H
Seat depth	430mm	Driving Range	10-20 KM
Seat height	500 mm	Max Speed	6KM/h
Back height	480mm	Climbing ability	9°
Product size	1040*680*836 mm	Motor	350W*2Pcs brushless motor
Folding size	680*270*836 mm	Battery	24V 12Ah lithium
Rear wheel size	10 inches	Brake type	Electromagnetic brake
Front wheel size	8 inches	Braking distance	≤1000mm
N/G	27 Kg/ 32 Kg	Obstacle crossing height	≤40mm
Frame material	aluminium	Cushion	Black/ gold/ red

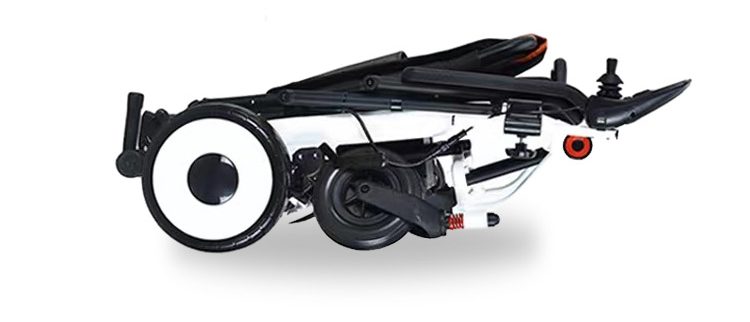

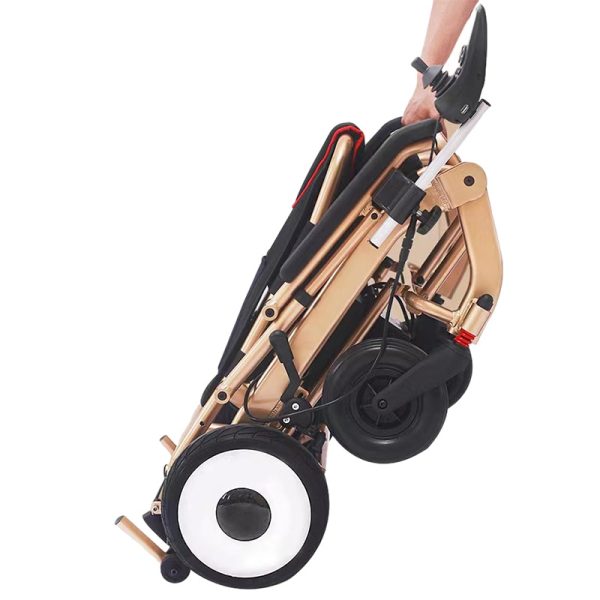

The YSE141 Folding Aluminum Electric Wheelchair is designed to provide reliable mobility for everyday use while remaining easy to transport and store. Built with a durable aluminum alloy frame, the wheelchair offers a solid structure while keeping the overall weight manageable. The full folding design allows the chair to be quickly collapsed to a compact size of 680 × 270 × 836 mm, making it easier to place in a car trunk, store at home, or take along during travel. For users who need a practical and portable electric wheelchair, this model focuses on functionality and convenience without unnecessary complexity.

Power comes from two 350W brushless motors, delivering stable driving performance on common indoor and outdoor surfaces. Combined with a 24V 12Ah lithium battery, the YSE141 provides a driving range of approximately 10–20 km on a single charge, depending on terrain and usage conditions. Charging typically takes between 4 and 6 hours, allowing the wheelchair to be ready for daily activities. With a maximum speed of 6 km/h and a climbing ability of up to 9°, it is suitable for sidewalks, ramps, and moderate slopes encountered in everyday environments.

Control is handled through a 360° joystick controller, which allows precise movement in tight indoor spaces such as hallways, elevators, and small rooms. The responsive joystick system helps users easily navigate forward, backward, and turn smoothly with minimal effort. Safety is supported by an electromagnetic braking system, which automatically stops the wheelchair when the joystick is released. This feature helps maintain control and reduces stopping distance, improving confidence during daily use.

User comfort is also considered in the seating design. The wheelchair includes a double composite cushion that provides stable support during longer periods of sitting. The seat dimensions—420 mm width and 430 mm depth—offer a balanced seating area for most users, while the 480 mm back height provides adequate back support. A flip-up footrest allows easier entry and exit from the wheelchair, which can be especially helpful during transfers. The extended metal manual brake adds an additional mechanical braking option when the chair is parked.

The wheel configuration combines 8-inch solid rubber front wheels with 10-inch non-inflatable rear wheels. This setup reduces maintenance requirements since the tires do not require inflation and are resistant to punctures. The design also supports obstacle crossing up to 40 mm, helping the wheelchair move across small bumps or uneven surfaces commonly found in daily environments.

With a maximum load capacity of 100 kg, the YSE141 is suitable for a wide range of users. The wheelchair weighs approximately 27 kg net, balancing structural durability with portability. Multiple cushion color options—black, gold, and red—allow basic customization while maintaining a clean and practical design.

Folding Aluminum Electric Wheelchair YSE141– Frequently Asked Questions

1. Is the YSE141 folding electric wheelchair easy to transport and store?
Yes. The YSE141 folding electric wheelchair is designed with portability in mind. The aluminum alloy frame allows the entire wheelchair to fold into a compact size of 680 × 270 × 836 mm, which makes it much easier to store at home or place in the trunk of a car. Many users choose this lightweight folding electric wheelchair for travel, short trips, or daily transportation because it can be folded within seconds without complicated steps. At approximately 27 kg net weight, it offers a good balance between structural strength and portability.

2. How far can the wheelchair travel on a single charge?
The YSE141 electric wheelchair is powered by a 24V 12Ah lithium battery and dual 350W brushless motors, providing a typical driving range of 10–20 km per charge depending on terrain, user weight, and driving conditions. Charging usually takes 4–6 hours, which means the chair can easily be recharged overnight or during the day between uses. For daily activities such as indoor movement, short outdoor trips, or shopping, the battery capacity is generally sufficient for a full day of use.

3. Is the YSE141 suitable for both indoor and outdoor use?
The wheelchair is designed for stable performance in both environments. It uses 8-inch solid rubber front wheels and 10-inch non-inflatable rear wheels, which require minimal maintenance and eliminate concerns about punctures. The 360° joystick controller allows precise maneuvering in tight indoor spaces such as hallways, elevators, and small rooms. At the same time, the dual 350W brushless motor system provides enough power for sidewalks, ramps, and mild slopes up to 9° climbing ability. The built-in electromagnetic braking system automatically stops the chair when the joystick is released, helping maintain control and safety during everyday use.
