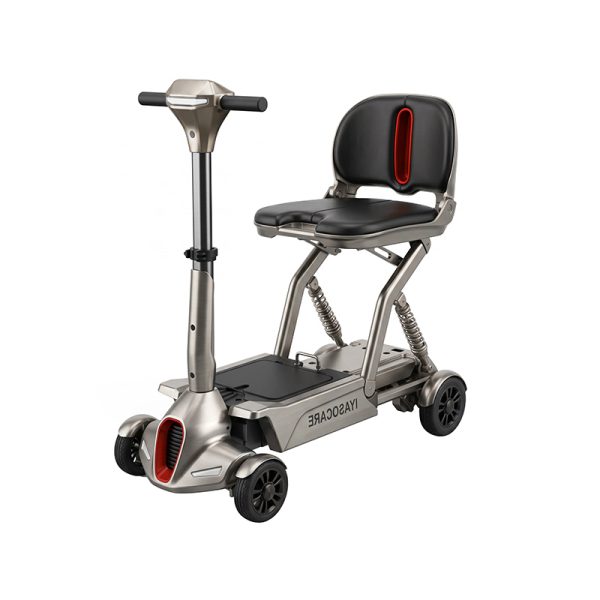

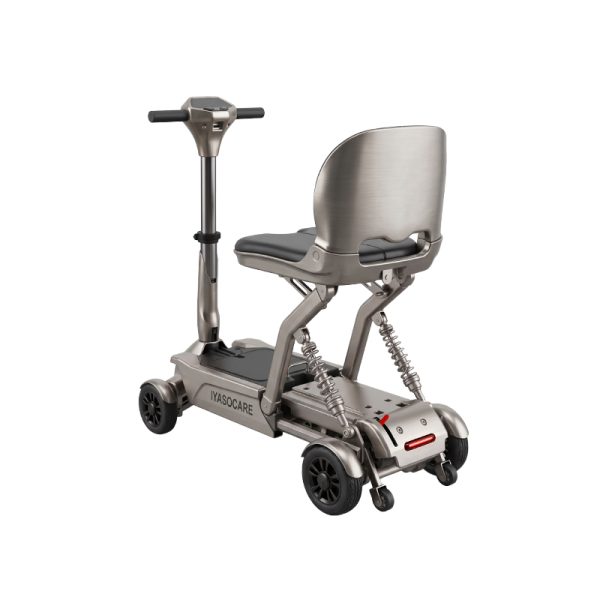

Lightweight Folding Electric Mobility Scooter YSS3023 with Long Range

Product Specs
Brand	Iyasocare	N/G	24/28KG (without battery)
Model	YSS3023	Load	100KG

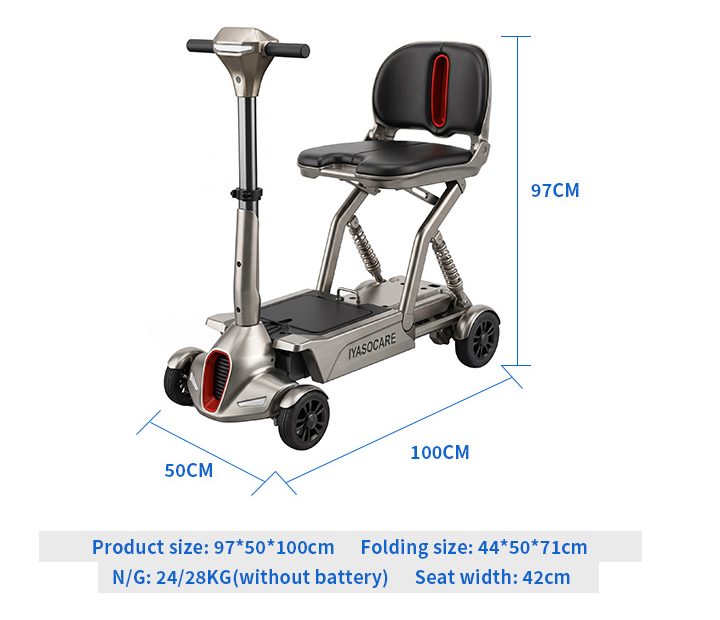

Product size	970*500*1000 mm	Package Size	430*600*850 mm
Folding size	440*500*710 mm	Folding type	manual/ electric
Seat width	420 mm	Charge time	5-8H
Seat depth	400 mm	Driving Range	10-30KM
Back height	400 mm	Max Speed	6 KM/h
Brake distance	≤3m	Climbing ability	6°
Front wheel	6 inches	Motor	24V 250W Brushless
Rear wheel	8 inches	Battery	24V 20/30AH Semi-solid battery/ 24V 10/20AH Lithium battery
Frame	aluminum alloy + ABS	Parking Brake	electromagnetic brake

Electric folding mobility scooter

Lightweight. Powerful. Intelligent.

Electromagnetic brake

Responsive and safe automatic braking

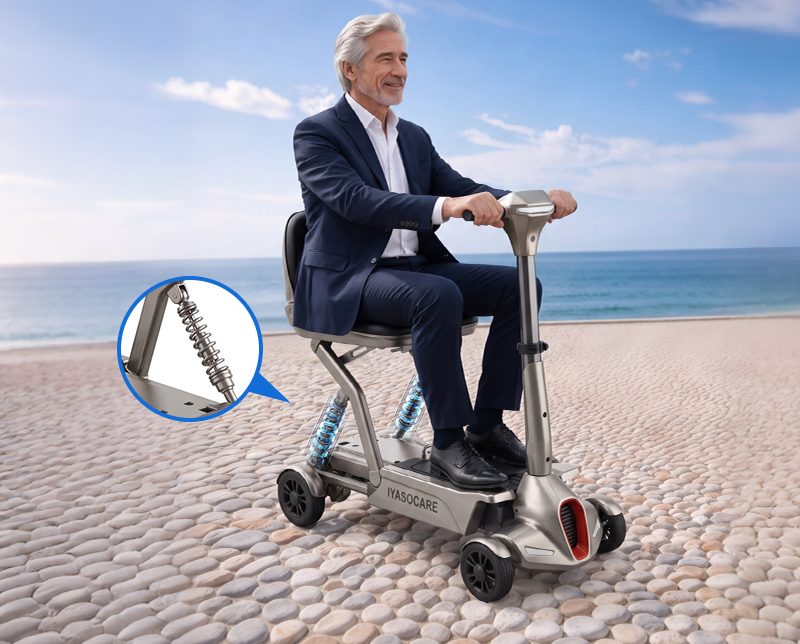

Strong shock absorption

The double shock absorbers make the ride more comfortable

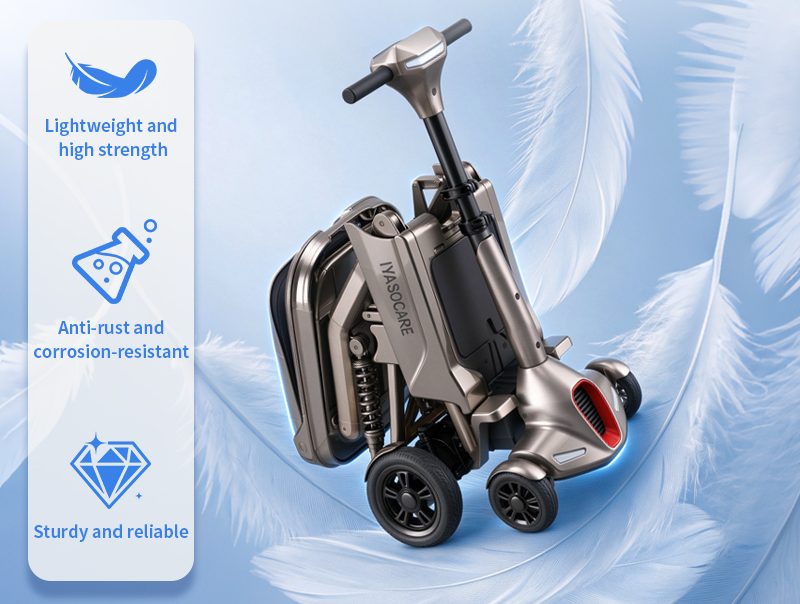

Lightweight & Durable

Only24kg,Aluminum alloy frame

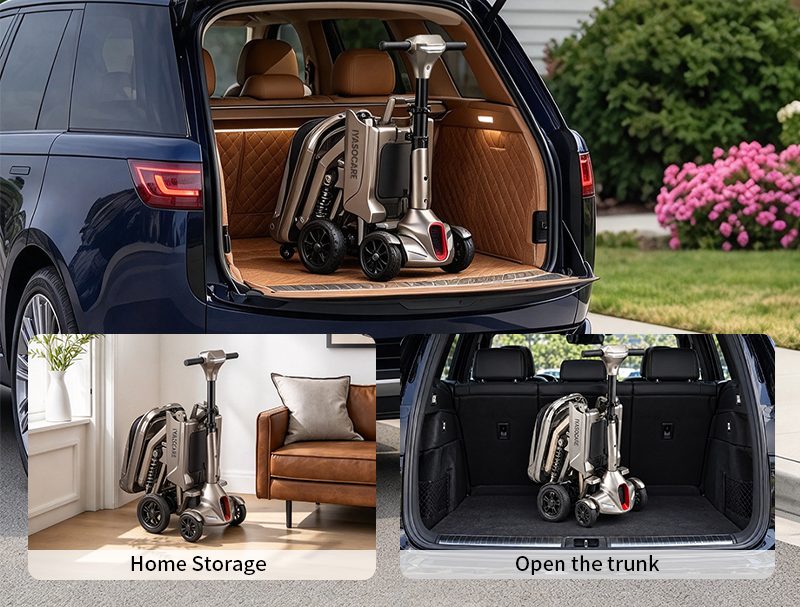

Folding storage

It is more convenient to carry when traveling

Electric folding

mobility scooter

Lightweight. Powerful. Intelligent.

Lightweight Folding Electric Mobility Scooter YSS3023 – Frequently Asked Questions

1. How far can the YSS3023 electric mobility scooter travel on a full charge?

The YSS3023 offers a claimed driving range of approximately 10–30 km (6–18.6 miles) per charge, depending on the battery configuration. Buyers can choose between 24V 10Ah or 20Ah lithium batteries and 24V 20Ah or 30Ah semi-solid-state batteries, subject to the available configuration.

Actual range may vary with rider weight, terrain, temperature, battery condition, and driving habits. If you plan to use the scooter for regular outdoor trips, choosing the right battery capacity for your daily travel distance is worth considering.

2. Is the YSS3023 easy to fold and transport?

Yes. The YSS3023 is designed with portability in mind and supports both manual and electric folding, depending on the selected version.

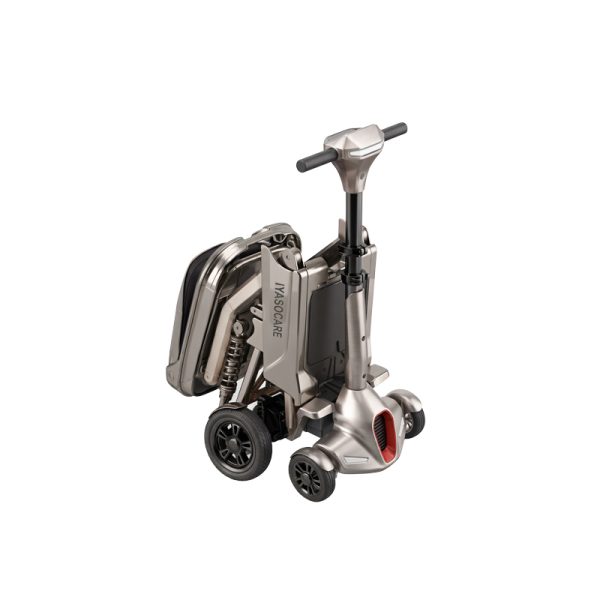

When folded, it measures approximately 440 × 500 × 710 mm, making it more compact for storage in suitable spaces, such as a car trunk or at home. Its unfolded dimensions are 970 × 500 × 1,000 mm.

Before purchasing, check your vehicle’s trunk dimensions and loading access to ensure the folded scooter will fit comfortably.

3. How much does the YSS3023 weigh?

The listed net and gross weights are approximately 24 kg and 28 kg, respectively, without the battery.

The actual carrying weight will depend on the battery and selected configuration. Although the aluminum alloy frame helps keep the scooter lightweight, 24 kg is still substantial for many people to lift independently. If you frequently need to load it into a vehicle, consider whether you will have assistance or access to a suitable loading aid.

4. Which battery should I choose: lithium or semi-solid-state?

The YSS3023 is available with two battery types, depending on the configuration.

• Lithium battery: Available in 24V 10Ah and 20Ah options. A practical choice for buyers who want a familiar rechargeable battery system.
• Semi-solid-state battery: Available in 24V 20Ah and 30Ah options. The larger capacities may be better suited to users who need more energy for longer trips.

Battery capacity is an important factor in determining range, but it is not the only one. Ask the supplier to confirm the exact battery specification, expected range, charging requirements, and battery weight before placing your order.

5. How long does it take to charge the battery?

A full charge typically takes around 5–8 hours, according to the listed specifications. Charging time can vary with battery capacity, remaining charge, charger output, and battery condition.

For convenience, many users may find it helpful to charge the scooter overnight or after returning home. Always use the compatible charger supplied or approved by the manufacturer, and follow the battery charging and storage instructions.

6. Is the YSS3023 comfortable enough for everyday use?

The YSS3023 features an ergonomic seat with a 420 mm seat width, 400 mm seat depth, and 400 mm backrest height. The seat uses high-strength nano-fabric, while the suspension system combines a front double-wishbone design with rear independent suspension.

Its 6-inch front wheels and 8-inch rear wheels are made from solid PU material, helping eliminate the need to inflate tires.

These features are designed to support a more comfortable and convenient ride. However, personal comfort depends on body size, posture, trip duration, and the surfaces you travel on. If possible, check the seating position and support before purchasing.

7. What is the maximum speed, and can it handle slopes?

The YSS3023 has a listed maximum speed of 6 km/h (3.7 mph) and a stated climbing ability of up to 6°.

This speed is intended for controlled, low-speed mobility rather than fast travel. The climbing figure indicates the stated slope capability, but actual performance can vary with rider weight, battery charge, surface grip, and road conditions.

For safer use, reduce speed on slopes, avoid slippery or uneven surfaces where possible, and follow the manufacturer’s guidance on gradient limits.

8. What is the maximum weight capacity?

The YSS3023 has a maximum listed load capacity of 100 kg (220 lb).

When choosing a mobility scooter, it is important to consider the rider’s weight along with any bags or personal belongings carried during a trip. Staying within the specified load limit helps support safe operation and reliable performance.

If your total expected load is close to the limit, confirm the manufacturer’s recommendations before ordering.

9. What safety features does the YSS3023 offer?

The scooter is equipped with an electromagnetic braking system and a listed braking distance of no more than 3 metres under the specified test conditions. It also features LED lighting for visibility and solid PU tires that do not require inflation.

Braking performance can change with speed, slope, surface conditions, rider weight, and battery status. The stated braking distance should not be assumed to apply in every situation.

For everyday safety, test the brakes in a clear area before riding, allow extra stopping distance, and use appropriate lighting when visibility is reduced.

10. Does the YSS3023 support smart controls?

Yes. Depending on the selected version, the YSS3023 can include Bluetooth connectivity, NFC access, remote control, an automotive-style instrument panel, and full LED lighting.

These features add convenience when operating and monitoring the scooter. Since the available functions may differ between configurations, confirm which controls are included with your specific model before purchasing.

11. Is the YSS3023 suitable for travel and small storage spaces?

Its compact folded dimensions make the YSS3023 worth considering for users who need to store their scooter at home or transport it by car.

However, a folding design does not automatically mean the scooter is approved for air travel or suitable for every public transport system. Airline battery restrictions can be particularly important for larger-capacity batteries.

If you intend to fly with the scooter, check the battery’s watt-hour rating, airline requirements, and transport regulations in advance. Also verify the folded dimensions and total weight of your exact configuration.

12. What should I check before buying the YSS3023?

Before placing an order, make sure the scooter matches your daily needs. Pay particular attention to:

• Battery capacity and range: Choose a battery suited to your usual travel distance.
• Folding method: Confirm whether you are purchasing the manual-folding or electric-folding version.
• Total weight: Ask for the complete scooter weight with the selected battery installed.
• Rider fit: Check the seat dimensions and maximum load capacity.
• Terrain: Confirm that the stated speed and climbing ability suit your intended routes.
• Included features: Verify whether Bluetooth, NFC, remote control, and other smart functions are included.
• Charging and after-sales support: Confirm charger compatibility, warranty coverage, replacement battery availability, and service arrangements.

A little preparation can help you choose a configuration that better fits your lifestyle and avoid surprises after delivery.
